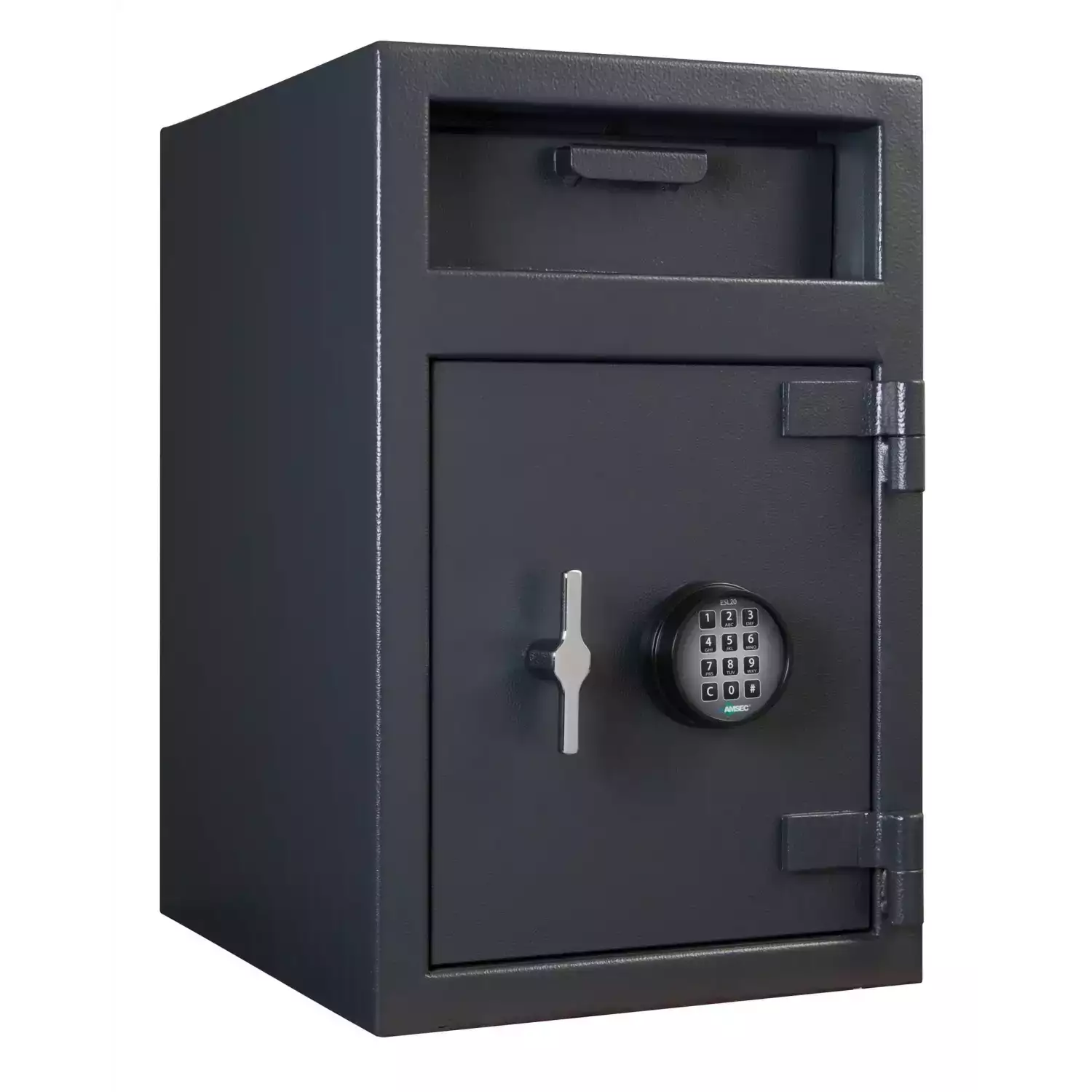

AMSEC DSF2516E2 Front Loading Till Storage Depository Safe

Model:DSF2516E2

• Dimensions:
• Outside: 25.00" H X 16.00" W X 20.00" D
• Inside: Receiving Locker: 5.88" H x 15.75" W x 13.75" D
  Till Storage Compartment: 9.00" H x 15.75" W x 17.00" D
• Interior Cubic Feet: Receiving Locker: 0.74
  Till Storage Compartment: 1.39
• Weight: 142
• Burglar Rating: B-Rat

Body:

• 1/8” solid steel plate
• Four anchor bolt holes

Door:

• ½” solid steel plate
• ESL20XL, U.L. Type 1 High Security electronic lock
1. Time Delay
2. Multiple users
3. Dual Control
4. Armored car override.
• Three 1” dia. steel locking bolts.
• Auto lock bolt detent system
• Auxiliary relocking device.
• Large carburized hardplate

Hopper:

• Large package sizes: 4.00” D x 2.75” W x 10.50” L
• 4” solid steel plate
• Dual “anti-fish” baffles.

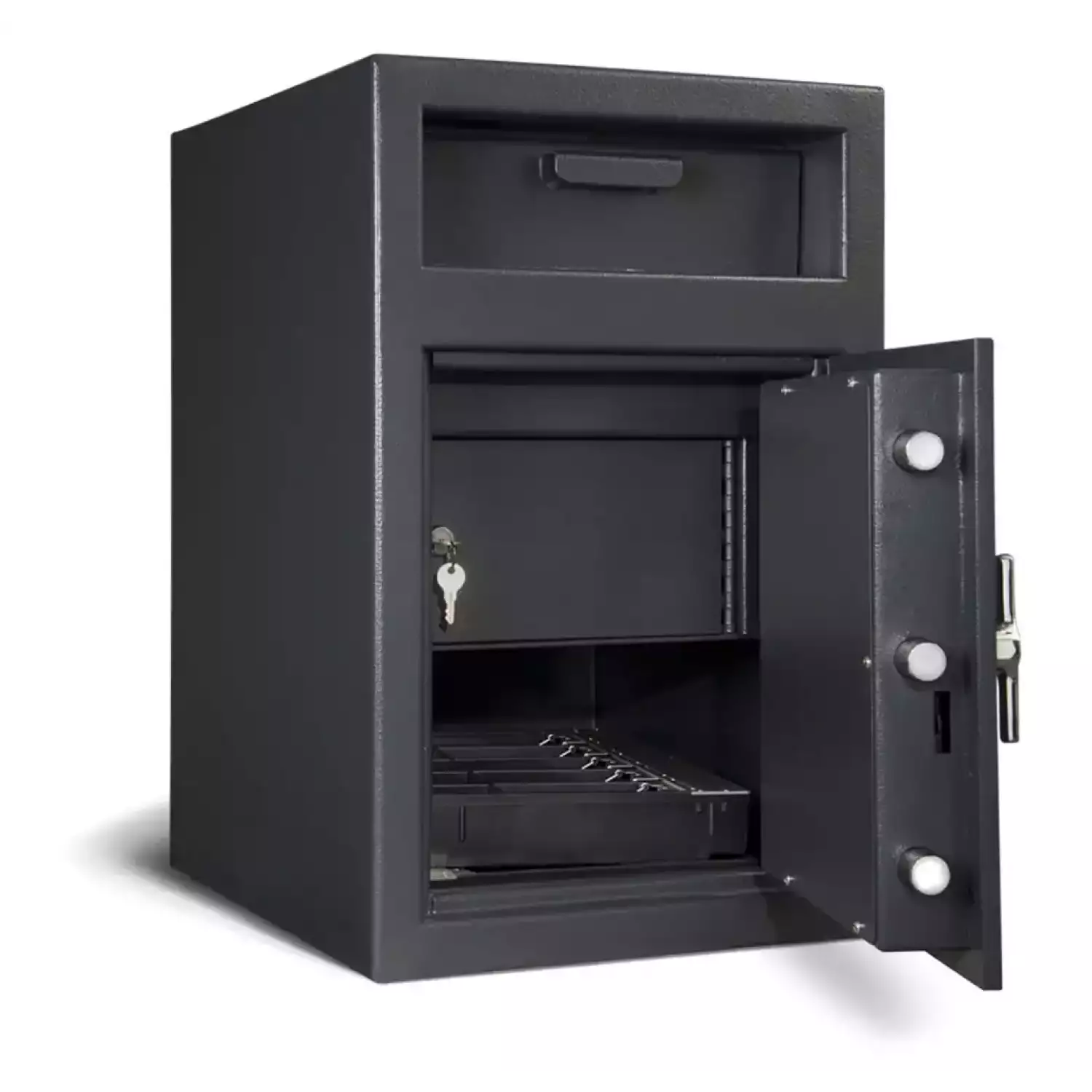

Interior:

• Receiving locker:
1. 1/4” solid steel plate
2. Clear door: 6.00” H x 10.00” W
3. Inside Dimensions: 5.88” H x 15.75” W x 13.75” D
4. Cubic capacity: 1272 cu/in.
• Till Storage Compartment
1. Fit up to 4 till trays
2. Clear door: 14.50" H x 12.00" W
3. Inside Dimensions: 9.00” H x 15.75” W x 17.00” D
4. Cubic capacity: 2410 cu/in.

Interior Locker available with the following lock options:

• Standard - Single key cam lock
• High Security Medeco cam lock
• 4440 Dual Key Lock
• Mechanical Dial Combo Lock
• ESL20XL Multi User Digital Lock

ESLAudit Features:

• Large backlit 4-line LCD display
• 40 users, each configurable with unique privileges
• 2,000 record audit trail stored inside the safe
• Audible and visual feedback
• Brushed satin chrome
• Splash-proof keypad
• 3 types of users: PIN only, e-key and PIN/e-key
• Supports time delay
• Supports dual control
• Supports armored car bypass
• Supports holiday schedule
• AC power (with optional expansion module)
• Duress feature (with optional expansion module)
• Beeper volume control
• 15-minute penalty lockout after four incorrect entries
