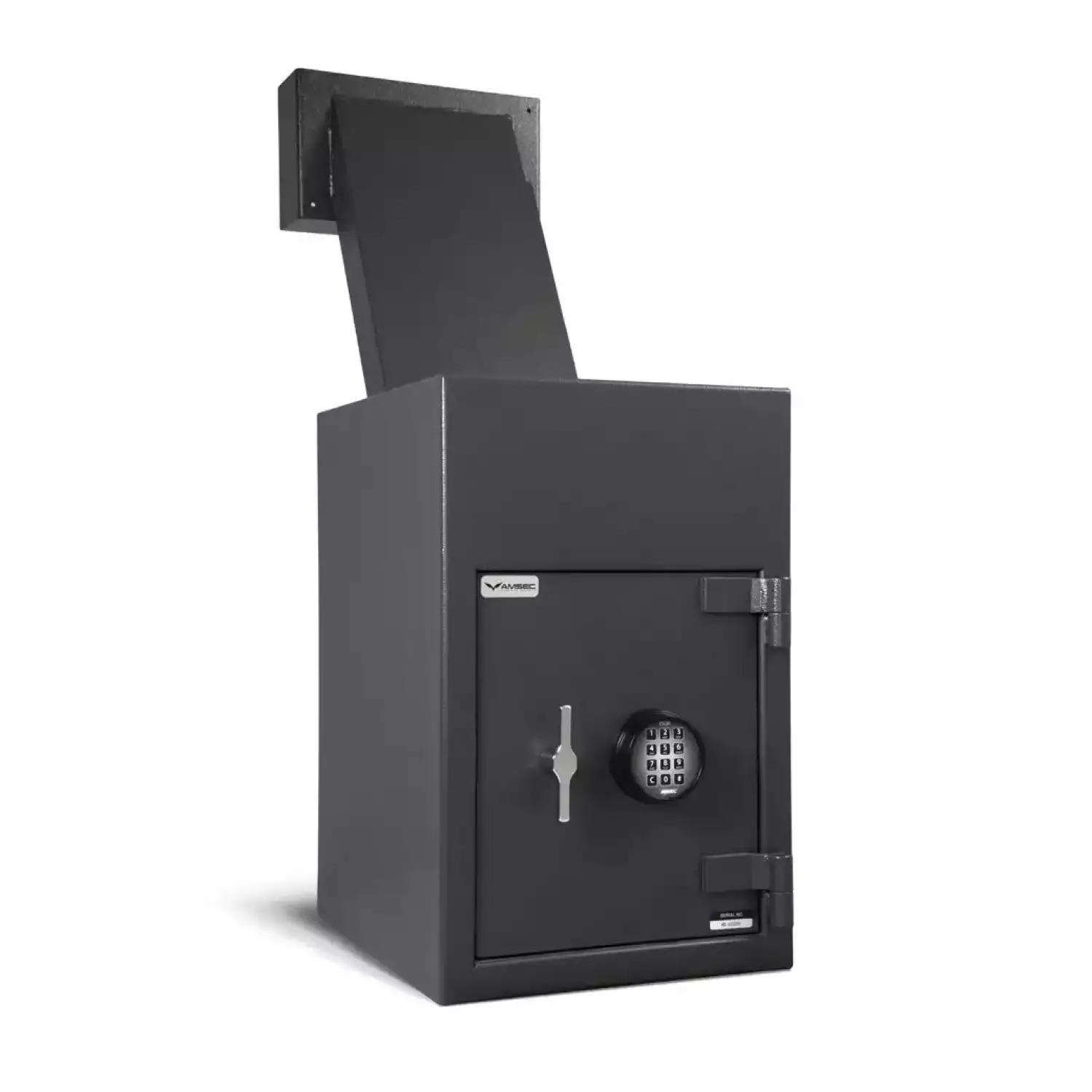

AMSEC DSR2516E2 Reverse Loading Till Storage Depository Safe

Model:DSR2516E2

• Dimensions:
• Outside: 25.00" H X 16.00" W X 20.00" D
• Inside: Receiving Locker: 5.88" H x 15.75" W x 13.75" D
  Till Storage Compartment: 9.00" H x 15.75" W x 17.00" D
• Interior Cubic Feet: Receiving Locker: 0.74
  Till Storage Compartment: 1.39
• Weight: 260.00
• Burglar Rating: B-Rat

BODY

• 1/8” solid steel plate
• Four anchor bolt holes

DOOR

• ½” solid steel plate
• ESL20XL, U.L. Type 1 High Security electronic lock
1. Time Delay
2. Multiple users
3. Dual Control
4. Armored car override.
• Three 1” diameter steel locking bolts.
• Auto lock bolt detent system
• Auxiliary relocking device.
• Large carburized hardplate

REVERSE HOPPER

• Large package sizes: 4.00” D x 2.50” W x 9.50” L
• 1/8” solid steel plate
• Protected by dual “anti-fish” baffles
• Thru the wall depository with adjustable chute
• Wall Thickness: 6.88" D to 13.88" D
• Floor Height: 36.75" W to 48.75" W
• Drop chute adjustable from 44.25" minimum height to 55.50" maximum height.

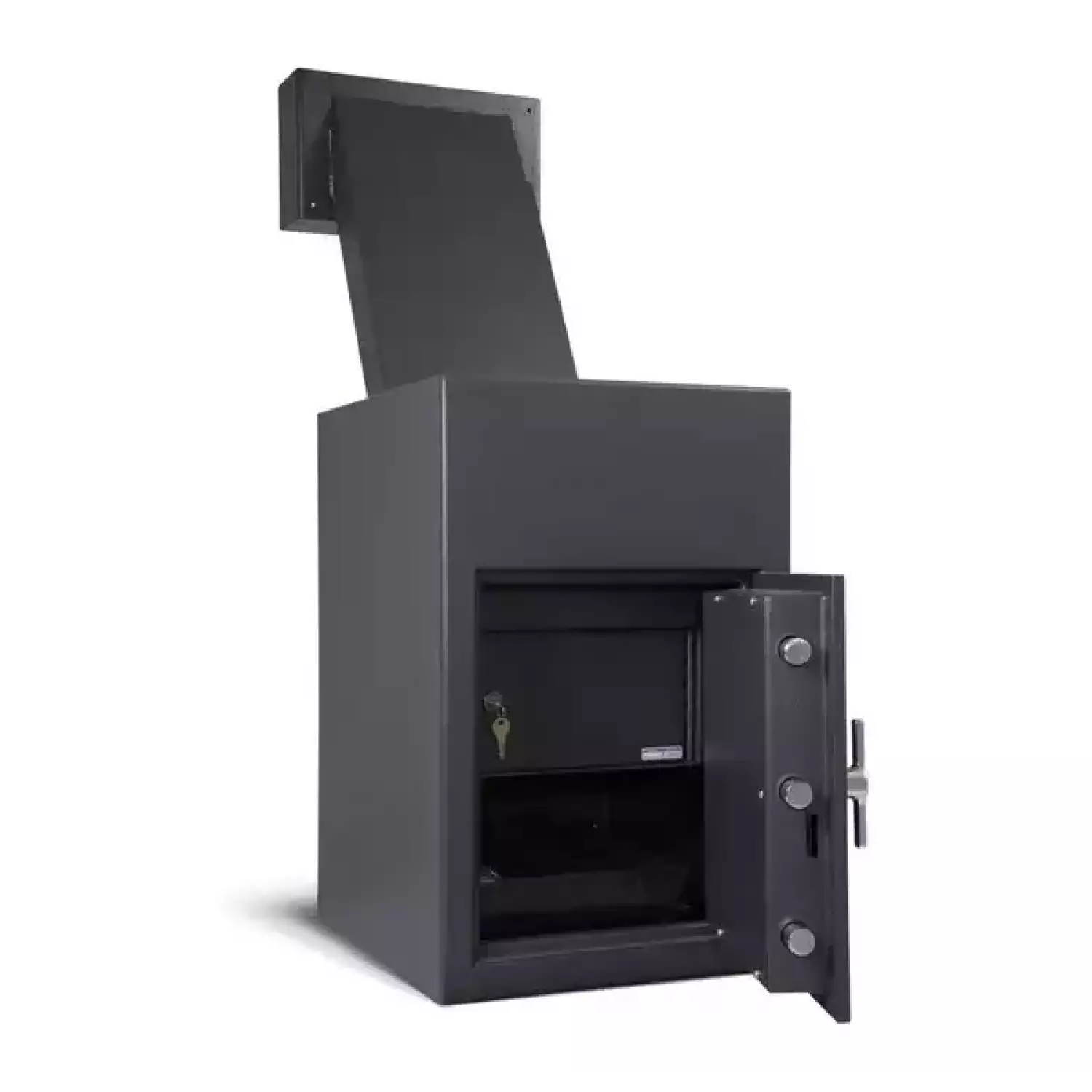

INTERIOR

Receiving locker:

1. 1/4" solid steel plate
2. Clear door: 6.00" H x 10.00" W
3. Inside Dimensions: 5.88" H x 15.75" W x 13.75" D
4. Cubic Capacity: 1272 cu/in. (0.74 cubic feet)

Till Storage Compartment:

1. Fits up to 4 till trays
2. Clear door: 14.50" H x 12.00" W
3. Inside Dimensions: 9.00" H x 15.75" W x 17.00" D
4. Cubic capacity: 2410 cu/in. (1.39 cubic feet)

Interior Locker available with the following lock options:

• Standard - Single key cam lock
• High Security Medeco cam lock
• 4440 Dual Key Lock
• Mechanical Dial Combo Lock
• ESL20XL Multi User Digital Lock

ESLAudit Features:

• Large backlit 4-line LCD display
• 40 users, each configurable with unique privileges
• 2,000 record audit trail stored inside the safe
• Audible and visual feedback
• Brushed satin chrome
• Splash-proof keypad
• 3 types of users: PIN only, e-key and PIN/e-key
• Supports time delay
• Supports dual control
• Supports armored car bypass
• Supports holiday schedule
• AC power (with optional expansion module)
• Duress feature (with optional expansion module)
• Beeper volume control
• 15-minute penalty lockout after four incorrect entries
